RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU

  • 1
  • 2

Brand Name : kacise

Model Number : KSA601

Certification : CE

Place of Origin : CHINA

MOQ : 0-100

Price : $0-$400

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100

Delivery Time : 3-10days

Packaging Details : Common package or custom package

Range Range : 0 ~ 70.0 PSU

Resolution : 0.1 PSU

Precision : ± 1.5% f.s. , ± 0.5 °C

Operating temperature : 0 ~ 65 °C

Working pressure : < 0.6 mpa

Power Supply : 12 ~ 24 VDC

Contact Now

RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU

RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU

1.Description of Application Environment

Seawater/brackish water/various water supplies/industrial water treatment Signal Output: RS-485(Modbus/RTU digital signal) Convenient to connect to PLC, DCS, Industrial Control Computer, General Controller, paperless recording instrument or touch screen and other third-party equipment.Immersion mounting, 3/4”NPT pipe threads for easy immersion mounting or installation in piping and tank.”.Ip 68, containment level.

2.Technical Specifications

Model number KSA601
Range Range 0 ~ 70.0 PSU
Resolution 0.1 PSU
Precision ± 1.5% f.s. , ± 0.5 °C
Operating temperature 0 ~ 65 °C
Working pressure < 0.6 mpa
Power Supply 12 ~ 24 VDC
Signal output RS-485(Modbus/RTU)
Shell material ABS (default)/POM
Installation mode Immersion mounting, 3/4”NPT pipe threads.”
Cable length 5 meters, other length can be customized
Temperature compensation Automatic temperature compensation (PT1000)
Calibration mode Two-point calibration
Power consumption 0.2W@12V
Protection level IP68

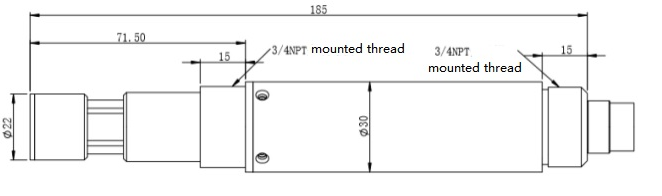

3.Dimensional Drawing

RS-485 Output ABS Shell Salinity Sensor For Brackish Water with resolution 0.1 PSU

Note: Sensor Connector is M16-5 core waterproof connector
