GXPS400M Series Level Transmitter
Introduction
GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of a small diameter pipe and the liquid level in the reservoir fluid height. Such as water, oil, mildly corrosive liquids.
The product uses the 1Cr18Ni9Ti stainless steel structure with import oil-filled pressure core, dedicated zoom and V / I transmitter conversion circuit, which can facilitate their zero and full scale calibration and external zero and span programmable regulation. Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.
The intrinsically safe certificate; explosion proof; CE certificate. Non polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.
Feature
Ø24 diameter
Split structure
0.1, 0.25, 0.5%F.S
The diffused silicon oil-filed core
Non-polarity two wire current output
Multiple pressure range and signal output
Intrinsically safe, explosion proof ,CE certificate
Application
Tail dam water level
Hydrologic monitoring
Water saving irrigation
Small caliber tube level
Constant pressure water supply
Frequency conversion water supply
Liquid storage tank liquid level height
Circulation fluid consumption monitoring
Parameter
| Spec. | Value |
| Pressure range | 0~1......500mH20 |
| Load pressure | 1.5 times nominal value pressure |
| Rupture pressure | 3 times nominal value pressure |
| Accuracy | 0.25%F.S, 0.5%F.S |
| Stability | Typical value 0.1%F.S/year, Max. 0.2% F.S |
| Operating temperature | -40°C~85°C |
| Compensation Temp. | -10°C~70°C |
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti |
| Electrical performance | 2 wire system | 3 wire system |
| Output signal | 4~20mA | 0/1~5Vdc | 0~10V |
| Power supply | 10~30Vdc | 6~24Vdc/ac | 11~30Vdc/ac |
| Load pressure | (U-10)/0.02Ω | >100kΩ |
| Insulation | >100M Ω@50V |
| Electric strength | 500V@60 second |
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
Electrical connection | Waterproof cable outlet+ two rectangular ring+ sealing ring+ seal gum+ glue; IP68 |

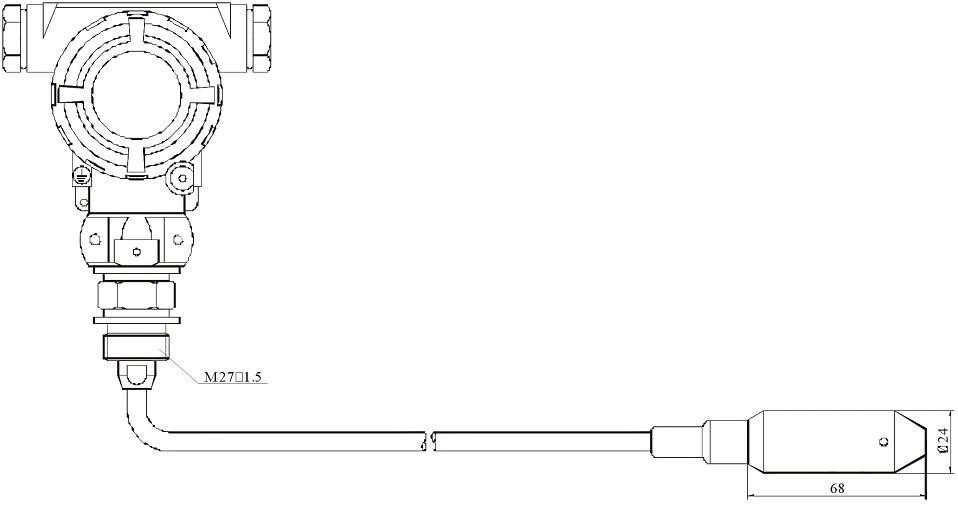

Pressure port | Submersible type, transmitting box wellhead connection dimension M27×1.5 |
| Pressure type | G | Response time: 10ms |
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |

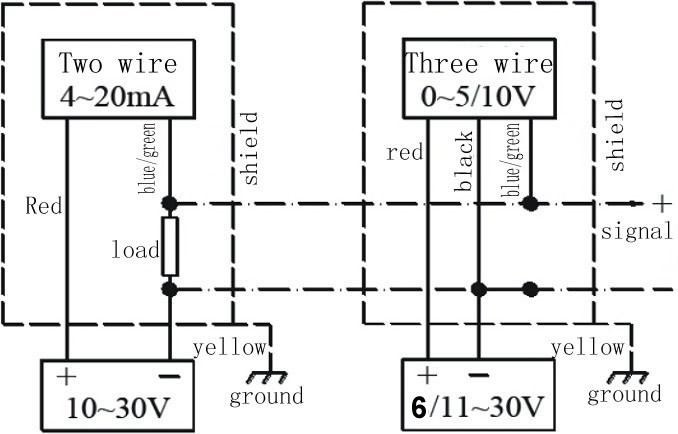

Electronic interface and signals definition
| Rear cover inside connection terminal definition |
| Mark | + | - |
|
|
| Current | 24Vdc | 4~20mA | | Shielded |
| Voltage | 24V(+) | Vout | 24V(-) | Shielded |
Ordering information
GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package
1.Type: GXPS400M
2.Range: 1m…500m= the upper limitation of the range
3.Output: A=4~20mA, V=0~5V, V1=1~5V, V2=0~10V
4.Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
5.Power: 24VDC, 11~30Vdc, or customized
6.Structure: T= submersible type, G=F=split, C=customized
7.Cable length: XXm=XX meter 1-150m
8.Package: Bb, Foam
