KUM-B Ultrasonic Fluid Level Meter Non Contact Digital Split Intelligent Enhanced

Brand Name : KACISE

Model Number : KUM-B

Certification : CE

Place of Origin : CHINA

MOQ : 0-100

Price : USD60-150/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 10000pcs/month

Delivery Time : 5-8 working days

Packaging Details : Common package or custom package

Range : 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m

Accuracy : 0.5%, 1%

Output : 4-20mA

Medium : Liquid, Solid

Contact Now

KUM-B Ultrasonic Fluid Level Meter Non Contact Digital Split Intelligent Enhanced

KUM-B ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

1. Technical Features:

  • Non-contact, can be used in various applications;
  • High accuracy: 0.5%, 1%
  • Various types of probes are available to meet the requirements of various applications.

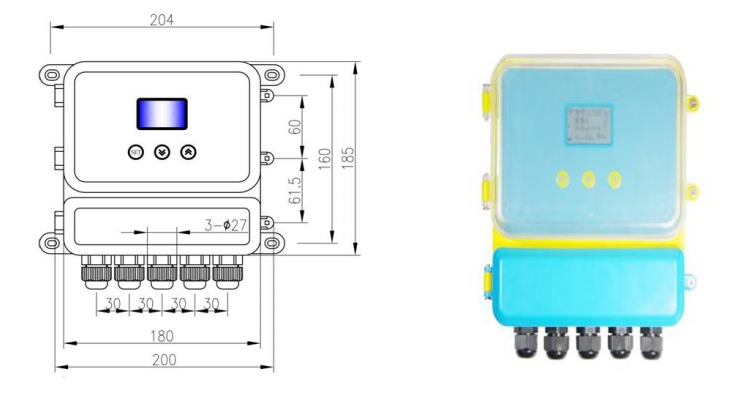

2. Structure:

KUM-B Ultrasonic Fluid Level Meter Non Contact Digital Split Intelligent Enhanced

3. Technical Specifications:

Specs Value
Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy 0.5%, 1.0%
Display LCD
Ambient Temperature Display instrument-20～+60℃
transducer-20～+80℃
Medium liquid and solid
Analog Output 4-20mA
Digital Output RS485, RS232 (both are optional)
Power Supply 24Vdc
Protection Grade Display instrument IP65,transducer IP68
Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

4. Model Selection:

KUM-B
Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
Output Signal
A 4-20mA
Accuracy
0.5 0.5%
1.0 1%
Power Supply
A 24Vdc
B 11~30Vdc
Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy

5. Applications and Installations:

  • Distance measurement
  • Depth measurement
