High Accuracy Load Cell Sensor Column Type Stainless Steel Material

Name: High Accuracy Load Cell Sensor Column Type Stainless Steel Material
Brand: KACISE
Price: 1 USD

High Accuracy Load Cell Sensor Column Type Stainless Steel Material Manufactures

Brand Name : KACISE

Model Number : KCZ-401

Certification : CE

Place of Origin : China

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 Piece/Pieces per Month

Delivery Time : 7 Working days

Packaging Details : Carton / Wooden box

Capacity : 5, 10, 20, 50, 100kN

Sensitivity : 1.0±10%mV/V

Hysteresis : 0.2%F.S

Non-linearity : 0.2%F.S

Zero balance : ±0.05mV/V

Material : Stainless Steel

Contact Now

High Accuracy Stainless Steel Column Type Load Cell

Features And Applications

Low profile, small deflection and mini dimension;

Made of stainless steel;

IP66 protection, customizable;

Suitable for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics and other industrial testing and control system

Technical Specifications

Capacity	5, 10, 20, 50, 100kN
Sensitivity	1.0±10%mV/V
Zero balance	±0.05mV/V
Non-linearity	0.2%F.S
Hysteresis	0.2%F.S
Repeatability	0.1%F.S
Creep (30min)	0.1%F.S
Temp.effect on output	0.05%F.S/10℃
Temp.effect on zero	0.05%F.S/10℃
Input impedance	780±20ohm
Output impedance	700±10ohm
Insulation	≥5000M ohm/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S
Ultimate overload	200%F.S
Cable size	Φ5x4m
Material	Stainless steel
IP class	IP66
Capacity	5, 10, 20, 50, 100kN
Sensitivity	1.0±10%mV/V

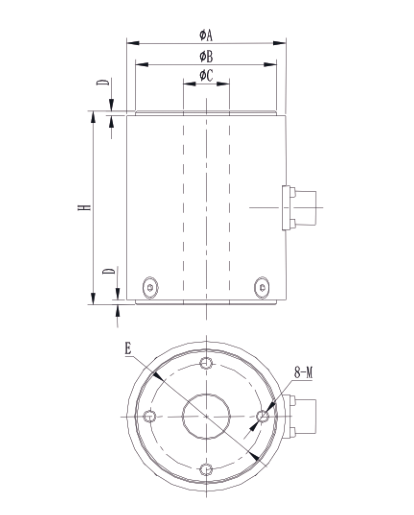

Dimensions and Connection

High Accuracy Load Cell Sensor Column Type Stainless Steel Material
