High Temperature Quartz Flexible Accelerometer Module Analog output

Xi'an Kacise Optronics Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Temperature Quartz Flexible Accelerometer Module Analog output

  • 1
  • 2

Brand Name : Kacise

Model Number : KSJR-5

Place of Origin : China

Packaging Details : ≤25Gram,Φ18.2*22mm

MOQ : 1

Supply Ability : 100+

Input Range : ±30g

Resolution/Threshold : ≤30ug

K0/Bias K0 : ≤±20mg

Bias K0 Temperature Sensitivity : ≤±80μg/℃

maxim over load : 40%

Intrinsic Noise : ≤8.0mV

Power supply : ±12~±15v

Power consumption : ≤20mA

Working temperature range : -55~+150(175)℃

Resonance Frequency : 350~800Hz

Contact Now

KSJR-5 High temperature Quartz flexible Accelerometer

  • Feature

☆ Tactical navigation grade performance

☆ High value

☆ Environmentally rugged

☆ Analog output

☆ Compact design

☆ Built-in test

☆ Field-adjustable range

  • Application
  • Deep well level measuring

☆ Automotive test instrumentation

☆ Braking system deceleration

☆ Bridge and building sway and tilt monitoring

☆ Industrial and robotic control

☆ Land vehicle navigation

☆ Subway and train ride comfort control

☆ Offshore drilling platform motion monitoring

  • Introduction

For an economic package, Kacise produces the KSJR-4 Quartz flexible Accelerometer for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring. The KSJR-4 features a etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability. The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

  • Parameter
KSJRA-5A
number parameters unit figure
1 Input Range g ±30
2 Resolution/Threshold ug ≤30
3 Bias K0 mg ≤±20
4 Bias K0 4-hours Composite Repeatability μg ≤30
5 1g 4-hour Composite Repeatability PPM ≤30
6 Bias K0 1-month Composite Repeatability μg ≤150
7 Bias K0 Temperature Sensitivity μg/℃ ≤±80
8 Scale Factor K1 mA/g 2.1±0.3
9 Scale Factor K1 1-month Composite Repeatability ppm ≤150
10 Scale Factor K1 Temperature Sensitivity ug/℃ ≤±100
11 Second order nonlinear coefficient(K2/K1) μg/g2 ≤40
12 maxim over load % 40
13 Intrinsic Noise mV ≤8.0
14 Power supply v ±12~±15
15 Power consumption mA ≤20
16 Working temperature range -55~+150(175)
17 Storage temperature range -60~+180
18 Shock tolerance g 1000g.8ms.1/2sin
19 Vibration Peak Sine g 25(20~2000Hz)
20 Resonance Frequency Hz 350~800
21 Bandwidth Hz ≤2500
22 Weight Gram ≤25
23 Dimensions mm Φ18.2*22
24 Axis Misalignment Second of arc ≤|100|”
25 Insulation characteristic ≥100MΩ

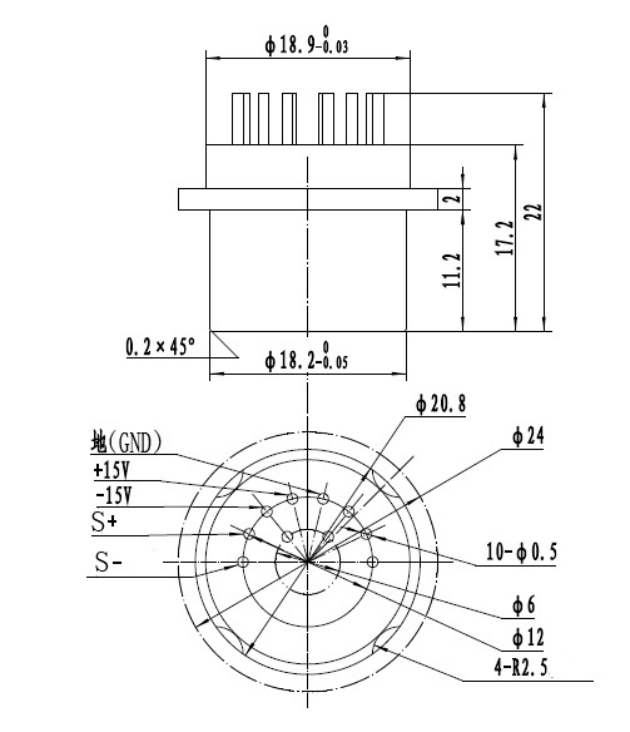

  • Electronic interface and signals definition
  • High Temperature Quartz Flexible Accelerometer Module Analog output
