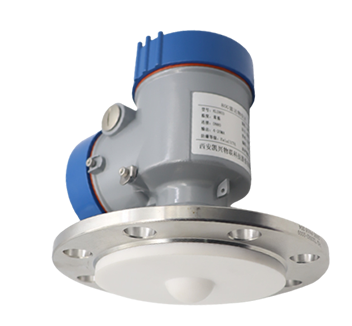

80G KLD803 FM Flanged Mounted Radar Transmitter For Continuous Level Measurement

  • 1
  • 2
  • 3

Brand Name : Kacise

Model Number : KLD803

Certification : CE/Explosion-proof

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100+

Delivery Time : 5-8 work days

Packaging Details : carton

Medium : strong corrosive liquid, steam, foam

Measuring range : 0.1m～10/20/30/60/100m

Process connection : flange ≥ DN50

Process temperature : -40～130℃

Process pressure : -0.1～2.5MPa

Antenna size : 34mm lens antenna (according to flange size)

Antenna material : PTFE

Accuracy : ±1mm/±5mm

Protection class : IP67

Center frequency : 80GHz

Launch angle : 3°

Power supply : DC24V/DC12~24V /AC220V

Casing : aluminum/plastic/stainless steel

Signal output : 4...20mA/HART protocol/RS485 Modbus

Contact Now

KLD803 80G FM Radar Level Sensor

Introduction

What does continuous wave mean?
A continuous wave or continuous waveform (CW) is an electromagnetic wave of constant amplitude and frequency, typically a sine wave, that for mathematical analysis is considered to be of infinite duration.
What is frequency modulated continuous wave?
FM continuous wave radar refers to a continuous wave radar whose transmitting frequency is modulated by a specific signal.
The principle of frequency modulated continuous wave (FMCW) radar is to send a continuous signal with a certain bandwidth and linear change in frequency, and then perform fast Fourier transform on the received continuous signal.

Feature

• Low power consumption power supply enables the equipment to operate independently in the most remote areas;
• Non-contact measurement principle. Not damaged by silt accumulation or debris;
• Wireless transmission, avoid the trouble of pulling cables. Install and use, remotely unattended;
• High-level industrial requirements for the appearance of the iron shell. Application in hazardous areas and harsh environments;

KLD803

80G KLD803 FM Flanged Mounted Radar Transmitter For Continuous Level Measurement

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna (according to flange size)

Antenna material: PTFE

Accuracy: ±1mm (range below 35m)

±5mm (range between 35m and 100m)

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

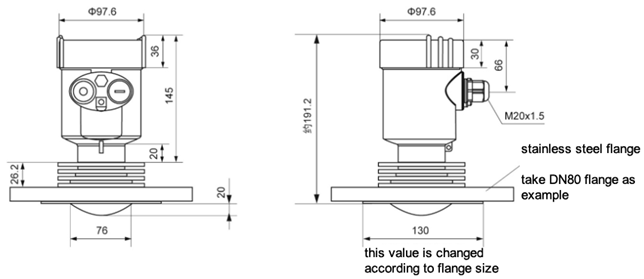

Product Dimension

Unit in mm:

80G KLD803 FM Flanged Mounted Radar Transmitter For Continuous Level Measurement

Installation Method

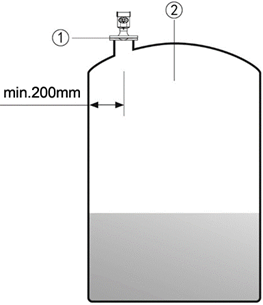

Flange Installation

When using flange installation, the minimum distance between the instrument and the tank wall should be 200mm.

  • datum plane
  • vessel center or axis of symmetry

80G KLD803 FM Flanged Mounted Radar Transmitter For Continuous Level Measurement 80G KLD803 FM Flanged Mounted Radar Transmitter For Continuous Level Measurement

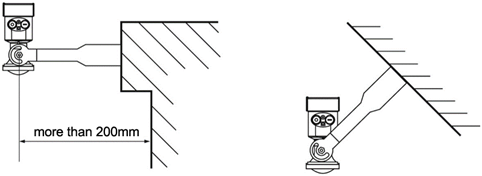

Hoisting Installation

80G KLD803 FM Flanged Mounted Radar Transmitter For Continuous Level Measurement

Xi'an Kacise Optronics Tech Co., Ltd considers itself a solution provider and manufacturer. We offer maximum flexibility and a cost-optimised offer for our OEM customers.

What we could provide:
The range includes customized shell version/color, thread type(G-Thread/NPT Thread), Customized Software, prints, manual and catalog. If you are interested in installing at your side, Radar Module is available for sure.
