Online COD sensor /Water quality monitoring/ surface water/ COD TOC Turbidity /digital RS-485/automatic cleaning device

Name: Online COD sensor Water quality monitoring surface water COD TOC Turbidity digital RS485automatic cleaning device
Brand: Kacise
Price: 1 USD

Online COD sensor /Water quality monitoring/ surface water/ COD TOC Turbidity /digital RS-485/automatic cleaning device Manufactures

Place of Origin : China

Brand Name : Kacise

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Supply Ability : 500 Piece/Pieces per Month

Price : negotiated

Model Number : KWS-100, KWS-101

MOQ : 1pc

Payment Terms : T/T, L/C

Product name : Online COD Sensor

Application : COD Analysor, waste water treatment,water quality sensor

Testing : SAC, COD,TOC,Turbidity

Output : RS-485, Modbus

COD Range : 0.5 to 370mg/L equiv. KHP, 1 to 1500mg/L equiv. KHP

COD Resolution : 0.01mg/L

Accuracy : ±5% equiv. KHP

Material : POM and 316L (Titanium customizable)

IP rating : IP68

Features : Automatic cleaning device, Optical detection

Port : Xi'an or other

Contact Now

Online COD sensor Water quality monitoring

Introduction

The COD sensor is Kacise's new generation of COD / TOC sensors. It does not require reagents, is non-polluting, is more economical, and is more environmentally friendly. The water volume is small, easy to install, and water quality monitoring can be performed online. Automatically compensates for turbidity disturbances and is equipped with an automatic cleaning device that maintains excellent stability even over long periods of time.

Principle

Many organic substances dissolved in water absorb ultraviolet light. Therefore, by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm, the total amount of organic pollutants in water can be measured. The Kacise COD series sensor uses two light sources, one 254nm ultraviolet light and one 850nm infrared light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.

Features

Digital sensor, RS-485 output, support MODBUS

No reagents, no pollution, more economical, more environmentally friendly

Can measure SAC, COD, TOC and other parameters

Automatically compensates for turbidity interference for outstanding test performance

With self-cleaning brushes to prevent biofouling and longer maintenance intervals

Applications:

COD sensors are mainly used for monitoring rivers, lakes, sewage, and other types of surface water, etc., and can be easily integrated into water quality monitoring systems to meet customer needs.

Technical Specifications

Model	KWS-100	KWS-101
COD Range	0.5 to 500mg/L equiv. KHP	1 to 1500mg/L equiv. KHP
COD Accuracy	±5% equiv. KHP	±5% equiv. KHP
COD Resolution	0.01mg/L
TOC Range	0.3 to 150mg/L equiv. KHP	0.4 to 600mg/L equiv. KHP
TOC Accuracy	±5% equiv. KHP	±5% equiv. KHP
TOC Resolution	0.01mg/L
Turbidity Range	0-300 NTU	0-500 NTU
Turbidity Accuracy	±5% or 0.5 NTU	±5%
Turbidity Resolution	0.01 NTU
Material	POM and 316L (Titanium customizable)
Operating Temperature	0~50℃ (no freezing)
IP Rating	IP68
Output	RS485, Modbus
Power Supply	DC12V-24V
Sensor Diameter	50mm
Sensor Length	214mm
Calibration	Support one point and two-points calibration
Max. Pressure	3 bar

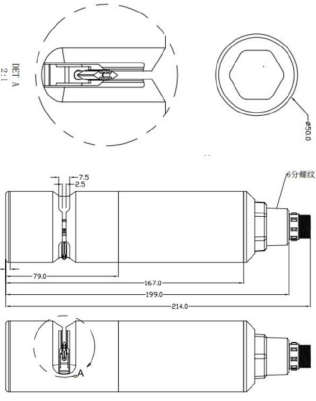

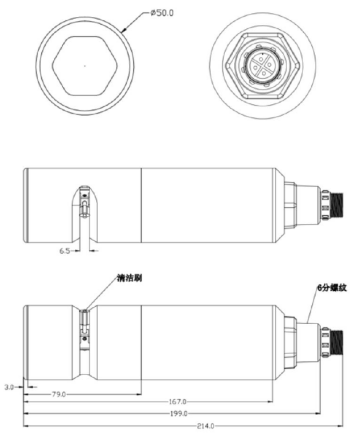

Dimention

KWS-100 KWS-101

Online COD sensor /Water quality monitoring/ surface water/ COD TOC Turbidity /digital RS-485/automatic cleaning device

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing.
Hope we can be good business partners.
