Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor

  • 1
  • 2

Model Number : KTN4A

Place of Origin : Shaanxi, China

Brand Name : Kacise

Packaging Details : 1pc/bag, according to custmer's requests.

Supply Ability : 1000 Set/Sets per Month

Price : $2,860.00 - $3,980.00/sets

Certification : CE,ISO9001

MOQ : 1pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 5-8 work days

Usage : Temperature Sensor

Theory : Ultrasonic Sensor

Output : Digital Sensor

Feature : Dynamically tuned Gyroscope for Well Logging

Port : Xi'an, Shanghai or other

Contact Now

Dynamically tuned Gyroscope for Well Logging

The features of the KTN4A Dynamically tuned Gyroscope are light weight, small volume, quick starting, which can be used in high temperature working environment, and now this kind of gyro has been applied to Short-range Missile Strap down attitude system and so on. This kind of gyro can be used in kinds of strap down attitude system and inertial measurement instrument with highly dimension space level.

1. Specification

NO.

Item

Parameter

1

Performance

Parameter

Random drift

≤0.3(1σ)(°)/h

Drift stability

≤1(1σ)(°)/h

Have not relevant to g of drift

≤20(°)/h

Have relevant to g of drift

≤8(°)/h/g

Frequency response

≥80Hz

2

Max. tracking rate

≥200(°)/s

3

Output non-linear

≤0.5%

4

Lifespan

≥5000h

5

Working temperature

-40—85 flange installation

-20—125 Logging shaft installation

6

Impact-proof overload-proof(8ms)

≥60 g

7

Physical data

Dimension

φ29×50mm

Flange

30×30mm

Weight

≤130g

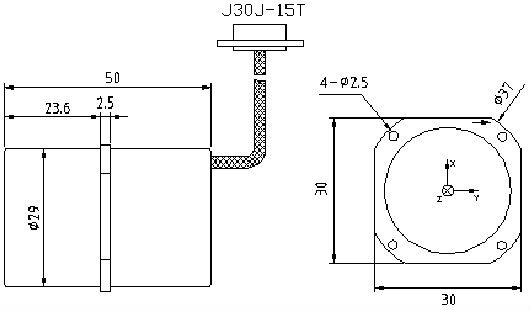

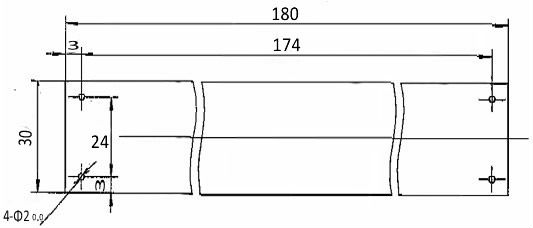

2. Structure

Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor

Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor

3. Definition of Gyroscope plug

J30J-15T(J30J-21T)

PLUG NO.

Feature

1

X axis output

2

Ground

3

X force main coil(end)

4

A phase

5

5V16KHz

6

Y axis output

7

Y force main coil(beginning )

8

B phase

9

+15V

10

-15V

11

X force main coil(beginning)

12

13

14

C phase

15

Y force main coil(end)

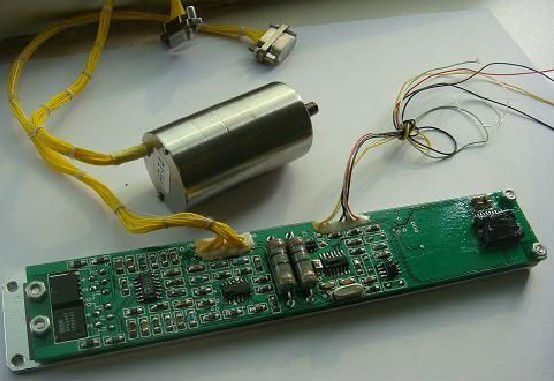

4. Product picture

Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor
Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor
Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor

Dynamically Tuned Gyroscope For Well Logging for Temperature Sensor
