KGD - YQ - 509 High - Precision UAV Methane Emission Detection System

Name: KGD YQ 509 High Precision UAV Methane Emission Detection System
Brand: KACISE
Price: 1 USD

Brand Name : KACISE

Model Number : KGD-YQ-509

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measurement Principle : Mid - infrared TDLAS

Optical Path Type : Open - path

Data Frequency : 10 - 20Hz

Sensitivity : < 100ppb

Weight : < 3kg

Software : Has the function of detecting, identifying, and quantitatively analyzing leakage events, and is equipped with deep - learning capabilities

Contact Now

KGD - YQ - 509 High - precision UAV Methane Emission Detection System

Product Introduction

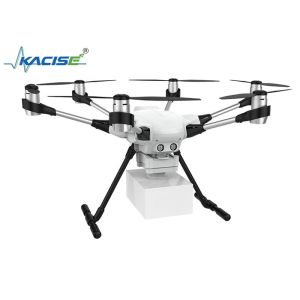

The KGD - YQ - 509 High - precision UAV Methane Emission Detection System uses a light - weight six - rotor all - electric vertical take - off and landing UAV, equipped with a greenhouse gas analyzer. The overall weight is no more than 3kg, making it miniaturized, portable, power - saving, and durable. Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, the entire system features a fast response speed and high sensitivity. The shell is made of highly anti - corrosive materials, suitable for detection in various spaces and different weather conditions. It can ensure the smooth completion of inspection operations in complex terrains such as mountains, hills, and jungles, as well as in limited areas like underground utility tunnels or densely - built areas.

KGD - YQ - 509 High - Precision UAV Methane Emission Detection System

Product Features

High measurement accuracy and low detection limit.
Strong anti - interference ability.
Long service life and strong corrosion resistance.
Modular design for easy integration.

Technical Parameters

Measured Component	CH₄
Measurement Principle	Mid - infrared TDLAS
Optical Path Type	Open - path
Data Frequency	10 - 20Hz
Sensitivity	< 100ppb
Weight	< 3kg
Software	Has the function of detecting, identifying, and quantitatively analyzing leakage events, and is equipped with deep - learning capabilities
Ethane Detection	Data acquisition rate 10 - 20Hz; Sensitivity < 15ppb
