LSBM-100 Industrial Automation Laser Ranging Module

Brand Name : KACISE

Model Number : LSBM-100

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Description : Long Measuring Range 100m

frequency : 1...20Hz

accuracy : ±3mm

Size / Dimension : 63x40x18mm

weight : 13g

measuring range : 0.03... 90% reflectivity in the 100m room

Contact Now

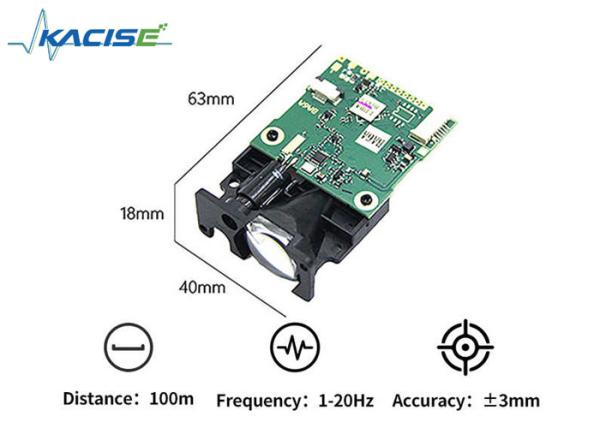

LSBM-100 Industrial Automation Laser Ranging Module

Product Introduction

The LSBM-100 Industrial Automation Laser Ranging Module, crafted by KACISE, is a boon for industrial automation processes. Leveraging advanced ITOF technology, it delivers rapid response times and remarkable ranging accuracy. Measuring just 63×40×18mm and weighing 13g, it’s easy to integrate into industrial systems. With a measuring range of up to 100 meters, ±3mm accuracy, and a data update frequency of up to 20Hz, it ensures seamless operation. Its long laser life of over 10,000 hours and wide - temperature operation from - 20℃ to 60℃ make it suitable for harsh industrial environments.

Product Features

Advanced Ranging Technology: ITOF technology enables high - speed and accurate measurements.

Compact and Lightweight: Facilitates easy integration into industrial machinery.

Long - Lasting Laser: Ensures extended operation without frequent replacements.

Technical Parameters

Measurement 0.03... 90% reflectivity in the 100m room
Duplicate accuracy 2mm
Absolute accuracy ±3mm
Measuring rate 3...20Hz
Measure the target object natural target
Laser life Over 10,000 h
light source 635nm red visible laser
Laser safety level 2
Typical light spot size 10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface UART
Working voltage DC2.5…3.3 V
Working temperature -20~60℃
power dissipation ＜0.27W
size 63×40×18mm
weight 13g
