KMPW100 Water Monitoring System with Five-channel Electrical Relay and Strong ABS Housing

  • 1
  • 2

Brand Name : KACISE

Model Number : KMPW100

Certification : CE

Place of Origin : china

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Display : 7" color touch screen, LED backlight

Resolution : 800* 480

Electrical Relay : Five channels

Power Supply : 220 V AC or 24V DC (optional)

Communication Protocol : Supports RS-485, MODBUS protocol

Data Storage : Continuous storage >2 years

Data Copy : Supports USB disk export

Material : ABS housing

Contact Now

KMPW100 Water Quality Monitoring System 5 Relay Channels

Product Introduction

The KMPW100 Water Quality Monitoring System by KACISE comes with 5 relay channels. These relay channels can be used to control external devices based on the water quality data. It can monitor various water quality parameters and trigger corresponding actions when certain thresholds are reached. This makes it an intelligent system for maintaining stable water quality in different applications, such as aquaculture and water treatment plants

Features

  • Offers strong versatility, enabling any combination of KACISE water quality sensors. Plug-and-play with automatic detection and a 7-inch color touchscreen for simple operation.
  • Provides automatic data storage, real-time curve display, USB export functionality, and local storage capacity exceeding 2 years.
  • Supports up to 8 channels of 4-20mA analog output and RS485 digital output, enhancing system integration.
  • Integrated 5-way relay and 2-way digital I/O, compatible with DTU for extended remote control features.
  • Designed for wall mounting, compact and built to endure.

Technical Parameters

Display 7" color touch screen, LED backlight
Resolution 800* 480
I/O Interface Two channel
Electrical Relay Five channels
4-20mA Standard 1 channel (expandable to 8 channels)
Measurement Parameter Support KACISE's digital sensors, such as online multi-parameter,COD, ammonia nitrogen, ORP, salinity, BGA, chlorophyll, OIW, etc
Power Supply 220 V AC or 24V DC (optional)
Communication Protocol Supports RS-485, MODBUS protocol
Data Storage Continuous storage >2 years
Data Copy Supports USB disk export
Material ABS housing
Working Temperatur 0-50 ℃
Size 225mm*229mm*119mm (height*width * thickness)
Installation Wall-mounted

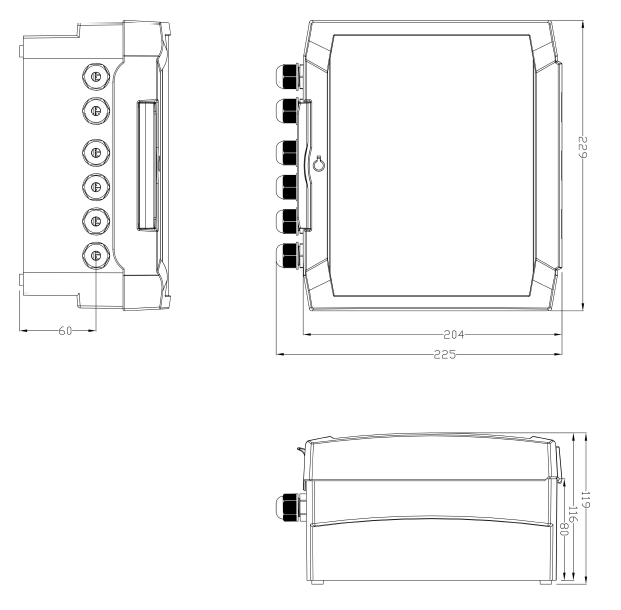

Dimensions

KMPW100 Water Monitoring System with Five-channel Electrical Relay and Strong ABS Housing
